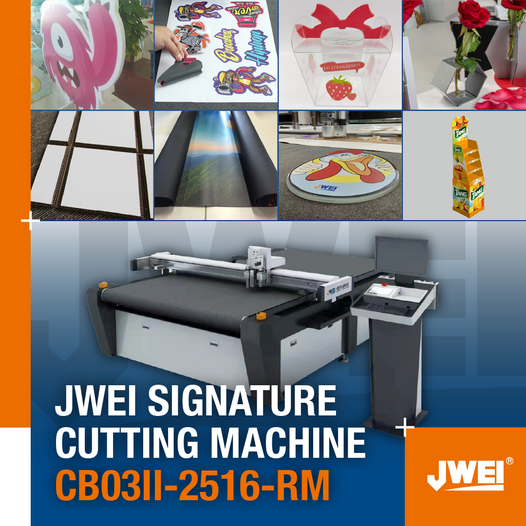

JWEI CB03II series flatbed digital cutter cutting solution is systematically geared towards fully automated digital production workflows in packaging industry and advertising industry for further diversification, a great number of users are well equipped to tackle the challenges of demanding manufacturing processes by using CB03II series flatbed digital cutter cutting solution, which handles well the wide variety of materials used in the packaging industry and advertising industry such as all kinds of corrugated paper, grey cardboard, PVC expansion sheet, honeycomb board, car sticker, EPE foam, EVA foam, soft membrane, flag cloth, light boxes, tarpaulin, KT board, PVC expansion sheet ,Acrylic ,PVC sheet, label sticker etc.
It makes packaging simplified with CCD precise positioning function integrated positioning and task classification that solves manual classification and recognition, to deliver greater cutting precision, especially for small shapes like small circle.
A multi-functional machine head of JWEI CB03II series cutting solution is the key to versatility offers a combination of functionality including engraving and router, oscillating through cutting, kiss cutting, creasing, laser positioning and so on.
Automatic feeding and collecting system demonstrate how smart and fast JWEI CB03II series flatbed digital cutter can be, and to create an unattended continuous work scene.
More upgraded features such as machine table, vacuum suction, integrated cable layout, one-whole head guard etc. have been added to JWEI CB03II series cutting solution to guarantee best-in-class cutting experience
Flatbed Digital Cutter with Triple Cutting Head
Designed for cutting advertising materials with high precision and industrial reliability.
| Model No. | CB03II-2513-RM | CB03II-2516-RM | CB03II-1113 | CB03II-1816-RM |
|---|---|---|---|---|
| Multifunctional Head | Easy to change different tools. Engraving and router. Oscillating through cutting / Kiss cutting / Creasing / Plotting / Laser positioning, and precise camera registration. | |||
| Tools | Various kinds of cutting blades, different sizes of creasing wheels | |||
| Safety Device | Infrared sensor, responsive, safe and reliable | |||
| Max. Speed | Up to 1500 mm/s | |||
| Cutting Speed | Up to 1200 mm/s (depends on different materials) | |||
| Cutting Thickness | Up to 50 mm (depends on different materials) | |||
| Cutting Material | Corrugated paper, grey cardboard, KT board, PVC expansion sheet, honeycomb plate, light slide, PP gum, car sticker, flag fabric, EPE foam, foam, acrylic, etc. | |||
| Repeatability | Up to 0.05 mm | |||
| Repeat Precision | Up to 0.01 mm | |||
| Buffer Memory | 2 GB | |||
| Interface | Ethernet port | |||
| Work Command | HP-GL compliant format | |||
| Transmission Distance | Up to 350 m | |||
| Transmission System | Digital servo driver, straight rail, synchronous belt, guide screw | |||
| Numerical Control Panel | EN LED touch screen | |||
| Power Supply | AC 380V / 220V ±10%, 50HZ / 60HZ | |||
| Working Environment | Temperature 0–35°C; Humidity 60%–80% | |||
| Effective Cutting Area | 2500 × 1300 mm | 2500 × 1600 mm | 1100 × 1300 mm | 1800 × 1600 mm |
