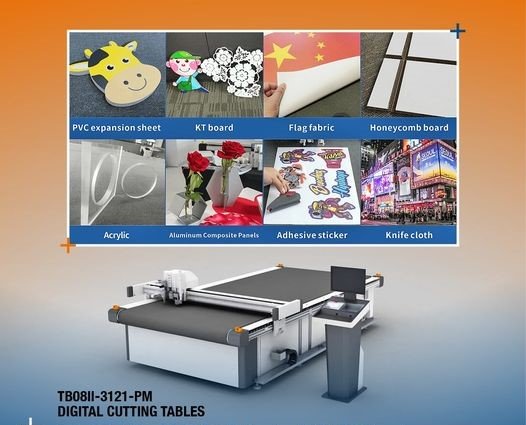

JWEI TB08II series digital cutting tables play an important role in helping customers trimming their production to be efficient and set the bar for consistency, optimal cutting effect of finished product in advertising industry, and this is why so many customers choose it to deal with printed advertising materials including all kinds of corrugated paperboard, cardboard, grey board, KT board, PVC expansion sheet, honeycomb board, car sticker, light slice, PP gum, flex banner, flag fabric, EPE foams, EVA, PVC plate, acrylic, thick foam etc.
Multi-functional machine head holds up to 3 sets of tools simultaneously to be speedy on process to show the versatility of JWEI TB08II series flatbed digital cutter.
Equipped with carbon fiber reinforced gantry which is reliable and stable. TB08II series flatbed digital cutter auto cutters enable high intensity industrial production handling.
JWCS control software with friendly interface and powerful editing and optimizing functions offers the easiest way to lean production.
Providing optional a robust set of automatic and high-power tools for routing, trimming, cutting to massively streamline production workflow.
Materials are fixed firmly through separate vacuum areas with maximum suction generated.
Frame using industrial aluminum alloy profile assures high rigidness of base, which is easy for shipping or assembling.
According to different size materials, the partition suction is set to make the material fixed tightly on the table and the cutting more precise.
More comprehensive functionality and more in line with operating requirements.
| Specification | TB08II-2516-PM | TB08II-3121-PM | TB08II-3516-PM |
|---|---|---|---|
| Multi-functional Machine Head | Easy to change different tools. Oscillating through cutting / Kiss cutting / Creasing / Plotting / Laser positioning, and precise camera registration. | ||
| Tools | Various kinds of cutting blades, different sizes of creasing wheels. | ||
| Safety Device | Infrared sensor, responsive, safe and reliable. | ||
| Max. Speed | Up to 1500 mm/s | ||
| Cutting Speed | Up to 1200 mm/s (depends on different materials) | ||
| Cutting Thickness | Up to 50 mm (depends on different materials) | ||
| Cutting Material | Corrugated paperboard, cardboard, grey board, KT board, PVC expansion sheet, honeycomb board, car sticker, light slide, PP gum, flex banner, flag fabric, EPE foams, EVA, PVC plate, acrylic, thick foam, etc. | ||
| Repeat Precision | ≤0.05 mm | ||
| Rated Power | 11 kW | ||
| Material Fixing Method | Intelligent multi-sub-area vacuum absorption | ||
| Work Command | HP-GL compliant format | ||
| Numerical Control Panel | English–Chinese LCD touch screen | ||
| Transmission System | Famous brand servo driver, high-precision linear guide-way, gear and rack meshing transmission structure | ||
| Interface | Ethernet port | ||
| Power Supply | AC 380V ±10% | ||
| Effective Cutting Area | 2500 × 1600 mm | 3100 × 2100 mm | 3500 × 1600 mm |
| Machine Size | 3425 × 3107 × 1280 mm | 3716 × 3966 × 2945 mm | 4450 × 2380 × 1280 mm |
